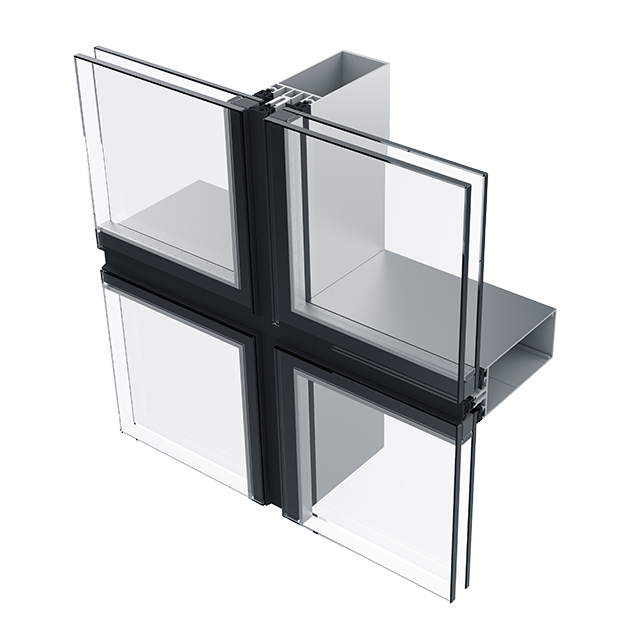

SG50 Curtain Walling System
SG50
CATEGORY
Curtain Walling
Description
The SG50 Curtain Walling System is a structurally glazed solution designed to offer high performance. Our aluminum curtain walls enable specifiers to create impressive facades that not only enhance the aesthetics of a building but also provide the functionality and performance required to meet and exceed current standards.
DESIGN FEATURES
- Uses same grid of mullions and transoms as the SL50
- Curtain walls with structurally bonded opening elements with “structural’ (all-glass) aesthetics.
- Can be used in a full structurally glazed solution or combined with an expressed outer cover in either vertical or horizontal planes.
- 21mm visible gaps between panels
- Glass installation is achieved by a stainless steel toggle which is fixed on the structure and guarantees mechanical retains
OPTIONS
- Peripherical and finishing profiles
- All surface finishes available. Customized finishes upon request.
| PERFORMANCE AND ACCREDITATIONS | |
| Air Permeability | A4 |
| Water Tightness | 1500 Pɑ |
| Wind Resistance | +2600 Pɑ |
| CWCT Certified | Sequence B |
| SYSTEM | |
| Face Width | 50mm |
| Depth | 50-260mm |
| INSERTED WINDOW AND DOOR CONFIGURATIONS | |
| Fixed Light | Yes |
| Top Hung | Concealed & Framed |
| Parallel Opening Window | Concealed & Framed |
| WEIGHT LIMITS | |
| Top Hung Max. Weight | 180kg |
| Fixed light Max. Weight | 550kg |
| Parallel Opening Window Max. Weight | 200kg |
| GLAZING | |
| Glazing Options | Dry (EPDM) & Wet (Sealant) |
| Glazing Thickness | 24mm, 28mm, 30mm & 32mm |
