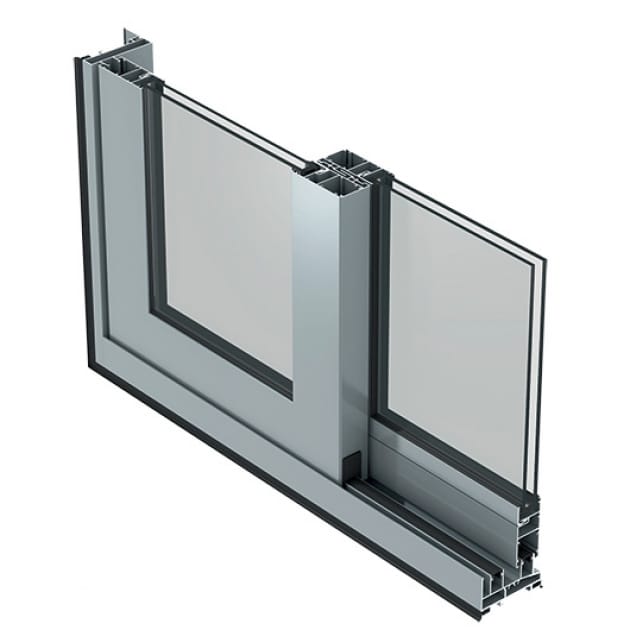

SC95 Sliding Windows and Door System
SC95
CATEGORY
Sliding Doors
Description
The SC95 sliding window and door system from KRAB is a superior, high-performance sliding solution with aesthetics and design appeal. The product comes with sturdy rollers tested for many cycles of operation and a trusted and proven KRAB product worldwide for decades. This versatile sliding window solution comes with lot of choices and customized options and is an ideal lifetime sliding solution for tropical and hot climate applications in high-rise buildings, individual residences and commercial establishments.
Design features
- Suitable for larger glazing panels.
- Safety glass applications
- Maximum load : 200kg/sash
- Glass thickness: 6mm – 28mm
Options
- A wide range of solutions are available
- All finishes are available. Customized finishes on request suited for high resistance to aggressive environments.
- Windows, balcony-doors
- 1-2-3-4-6 sashes movable on one, two or three tracks
Application type
Windows & balcony doors
- 2 Track 2 Sashes
- 2 Track 3 Sashes
- 3 Track 4 Sashes
- 3 Track 6 Sashes
- Monorail options
- Integrated balustrade
| PERFORMANCE AND ACCREDITATIONS | SC95TT | SC95NI |
| U-Value (Double Glazing) | Uw = 2.3W/m²K | NA |
| Air Permeability | Class 4 (600 Pɑ) | Class 3 (600 Pɑ) |
| Water Tightness | Class 8A | Class 7A |
| Wind Resistance | Class B2 | Class B5 |
| SYSTEM | ||
| Depth | 2 track 95mm & 3 track 143mm | 2 track 95mm & 3 track 143mm |
| Sightlines (Interlock) | 84mm | 84mm, 38mm & 25mm |
| CONFIGURATIONS | ||
| Opening | Sliding Door | Sliding Door |
| Dual Rail | Yes | Yes |
| Flush Threshold | Yes | Yes |
| SIZE AND WEIGHT LIMITS | ||
| Max Sash Height | 3000mm | 3000mm |
| Max Sash Width | 1500mm | 1500mm |
| Max Sash Weight | 200kg | 160kg – 200kg |
| GLAZING | ||
| Glazing Options | Internal | Internal |
| Glazing Thickness | 6mm-24mm | 6, 8, 13.52, 24, 26 & 28mm |
| SYSTEM FEATURES | ||
| Single Colour | Yes | Yes |
| Textured Finish | Yes | Yes |
| Anodised Finish | Yes | Yes |
| Lock | Cremone, Flush Type and Single Point, Multi Point locks options possibility | Cremone, Flush Type and Single Point, Multi Point locks options possibility |
| Lock with Key | Yes | Yes |
| Multi-point Locking | Yes | Yes |
| Flyscreen Option | Integrated | Integrated |
| Handrailing Option | No | Integrated |
