The 45DS is a 45mm, door system that offers an...

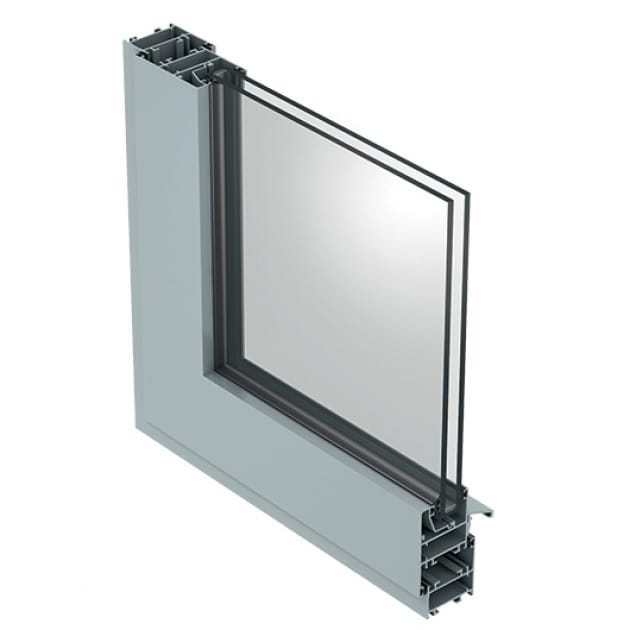

45DS Casement Window System
45DS
CATEGORY
Casement Windows
Description
The 45DS is a 45mm, door system that offers an optimized design, yet an affordable solution for all construction types requiring good weather performances.
Its simple appearance and clean lines suit the modern environment design requirements. Its wide choice of applications and technical solutions makes it ideal for all types of residential and commercial establishments. The 45DS casement is the ideal system for exterior joinery in tropical and hot climates.
DESIGN FEATURES
- Double overlap
- Frame/sash depth: 45mm
- Squared or rounded glass bead
OPTIONS
- All finishes available
- Casement, turn and tilt
- Inward and outward opening
APPLICATION
- Fixed Window
- Top Hung
- Side Hung Window single sash & double sash
- Casement Door Single sash & Double sash
- Tilt & Turn
- Open In – Open Out
- Integrated with fixed lights and SC45 Slider
- Variable angle window
- Integrated (Double window – Open In with mesh, Open out with glass shutter)
| PERFORMANCE AND ACCREDITATIONS | |
| U-Value (Double Glazing) | NA |
| Air Permeability | Class 4 (600 Pɑ) |
| Water Tightness | Class 9A (600 Pɑ) |
| Wind Load | Class B (2800 Pɑ) |
| SYSTEM | |
| Depth | 45mm |
| CONFIGURATIONS | |
| Opening | Casement window and door |
| SIZE AND WEIGHT LIMITS | |
| Max Sash Height | Window – 1800mm, Door – 2400mm |
| Max Sash Width | Window- 850mm, Door- 915mm |
| Max Sash Weight | 80kg |
| GLAZING | |
| Maximum Glazing Thickness | 5mm – 30mm |
| SYSTEM FEATURES | |
| Single Colour | Yes |
| Textured Finish | Yes |
| Anodised Finish | Yes |
| Lock | Cremone, Multipoint locks, detachable handle option in casement window |
| Lock with Key | Yes |
| Multi-Point Locking | Yes |
| Flyscreen Option | Integrated (Double window – Open In with Mesh/Open out with glass shutter) |
